Focus on cylindrical cell, mature and stable technology.
| Image | Type | ltem | Dimension | Charge Current | Max Discharge Current | Internal Resistant | 25℃ Cycle Time | Temp. Range | Certificate |
 | LFP High-temp. | 18650 3.2V1600mAh | h:65.2±0.3mm d:≤18.60mmm | 1C | 3C (4.8A) | ≤25mΩ | 2000 times (100%DOD) 4000 times (80%DOD) 7000 times (50%DDD) 60°C:1500times(100%DOD) | Charpe: 0℃˜60℃ Discharge: -20℃˜70℃ | IEC62133, RoHS, CE, UN38.3, BIS, UL1642 |
LFP Power Rate | 18650 3.2V1100mAh | h:65.2±0.3mm d:≤18.60mm | 5C | 30C(33A) | ≤18mΩ | 500 times (100%DOD) 1000 times (80%DOD) 3000 times (50%DDD) | Charpe: 0℃˜55℃ Discharge: -20℃˜60℃ | IEC62619,1EC62133, RoHS, UL1642,CE,UN38.3,BIS | |
| 26650 3.2V3000mAh | h: 65.7±0.3mm d:≤26.45mm | 3C | 10C (30A) | ≤15mΩ | 1500 times(100%DOD) 3000 times (80%DOD) 5000 times (50%DOD) | Charpe: 0℃˜55℃ Discharge: -20℃˜60℃ | IEC62133, RoHS, UL1642, CE, UN38.3,BIS, REACH | ||
LFP Capacity Type | 18650 3.2V1600mAh | h:65.2±0.3mm d:≤18.60mm | 1C | 3C (4.8A) | ≤25mΩ | 2000 times (100%DOD) 4000 times (80%DOD) 7000 times (50%DOD) | Charpe: 0℃˜55℃ Discharge: -20℃˜60℃ | IEC62133,RoHS, UL1642, CE, UN38.3, BIS | |
| 18650 3.2V1800mAh | h:65.2±0.3mm d:≤18.60mmm | 1C | 3C (5.4A) | ≤25mΩ | 2000 times (100%DOD) 4000 times (80%DOD) 7000 times (50%DOD) | Charpe: 0℃˜55℃ Discharge: -20℃˜60℃ | IEC62133,RoHS, UL1642, CE. UN38.3, BIS | ||
| 18650 3.2V2200mAh | h:65.2±0.3mm d:≤18.60mm | 0.5C | 3C (6.6A) | ≤25mΩ | 1500 times (100%DOD) 2000 times (80%DOD) 3000 times (50%DOD) | Charpe: 0℃˜55℃ Discharge: -20℃˜60℃ | RoHS, UN38.3, BIS, REACH | ||
| 26650 3.2V3400mAh | h:≤65.4mm d: ≤26.45mm | 1C | 3C (10.2A) | ≤25mΩ | 2000 times (100%DOD) 4000 times (80%DOD) 7000 times (50%DOD) | Charpe: 0℃˜55℃ Discharge: -20℃˜60℃ | IEC 62133, BIS, CE, RoHS, UL, UN38.3 | ||
| 26650 3.2V3600mAh | h: 65.7±0.3mm d:≤26.45mm | 1C | 3C (10.8A) | ≤25mΩ | 2000 times (100%DOD) 4000 times (80%DOD) 7000 times (50%DOD) | Charpe: 0℃˜55℃ Discharge: -20℃˜60℃ | IEC62133, RoHS, UL1642, CE, UN38.3, BIS, | ||
| 26650 3.2V3800mAh | h: 65.7±0.3mm d:≤26.45mm | 1C | 3C (11.4A) | ≤20mΩ | 2000 times (100%DOD) 4000 times (80%DOD) 7000 times (50%DOD) | Charpe: 0℃˜55℃ Discharge: -20℃˜60℃ | IEC62619,IEC62133,RoHS, UL1642,CE,UN38.3, BIS,GB31241 | ||
| 26650 3 2V4000mAh | h: 65.7±0.3mm d:≤26.45mm | 1C | 3C (12A) | ≤20mΩ | 2000 times (100%DOD) 4000 times (80%DOD) 7000 times (50%DOD) | Charpe: 0℃˜55℃ Discharge: -20℃˜60℃ | CE, UN38.3,IEC62133,IEC62619, UL1973,UL9540A,GB36276 | ||
| 26650 3.2V4500mAh | h: 65.7±0.3mm d:≤26.45mm | 0.5C | 3C (13.5A) | ≤20mΩ | 2000 times (100%DOD) 3000 times (80%DOD) 5000 times (50%DOD) | Charpe: 0℃˜55℃ Discharge: -20℃˜60℃ | UL1642,BIS | ||
 | NCM Capacity Type | 18650 3.6V2200mAh | h:65.2±0.3mm d:≤18.60mmm | 1C | 3C (6.6A) | ≤25mΩ | 1000 times (100%DOD) 1500 times (80%DOD) 3000 times (50%DOD) | Charpe: 0℃˜55℃ Discharge: -20℃˜60℃ | IEC62133,RoHS,UL1642.CE. UN38.3.BIS |
| 18650 3.6V2600mAh | h:65.2±0.3mm d:≤18.60mmm | 0.5C | 3C (7.8A) | ≤25mΩ | 1000 times (100%DOD) 1500 times (80%DOD) 2000 times (50%DOD) | Charpe: 0℃˜55℃ Discharge: -20℃˜60℃ | IEC62133,RoHS, UL1642, CE, UN38.3,BIS | ||

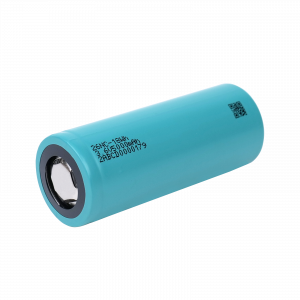

| 26650 3.6V5000mAh | h: 65.7±0.3mm d:≤26.45mm | 1C | 2C (10A) | ≤25mΩ | 1000 times (100%DOD) 2000 times (80%DOD) 3000 times (50%DOD) | Charpe: 0℃˜55℃ Discharge: -20℃˜60℃ | RoHS, UL1642, CE, UN38.3, BIS |
